Produts Description
Brass solder has good plasticity and highmelting point. lt can be completed by flamebrazing, induction brazing and other methodsDue to the high zinc content, there is smallamount of silicon in the brazing amount, andoverheating should be avoided during brazingso as to reduce the impact of zinc volatilizationon the compactness of the brazing joint.
Application Areas
lt is used for brazing of copper, steel, cast ironnickel based alloy and cemented carbide. Asbonding alloy for drill bit matrix, there are nearlyspherical particles, blocks and cvlindrical shortrods, which can also be customized accordingto customer needs.

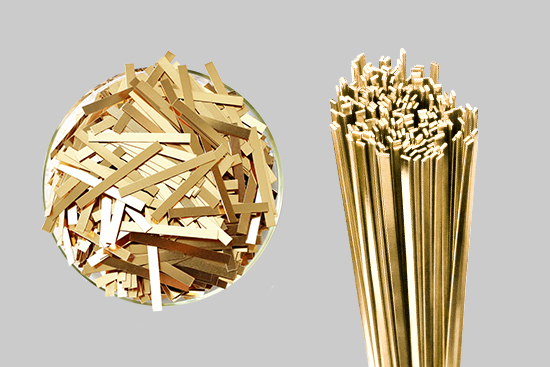

Product Form
Flux cored wire, flux coated wire, flux coredwelding ring, flux coated welding ring,conventional welding rod, powder, paste,welding ring, welding belt, flat bar, special-shaped ring, etc.
Product List
| Model | Chemical Composition | Melting Temp. | Shear Strength N/mm² | Speciality & Application | |
|---|---|---|---|---|---|
| Solidus | Liquidus | ||||
| HZ-105 | Cu60ZnMn | 890 | 950 | 330 | High melting point, Suitable for brazing steel, cemented carbide tools etc. |
| HZ-2113 | CuZnNiMn | 894 | 905 | 410 | More economy, Widely used in dental and stone tool welding. |
| HZ-2013 | CuZnMnSn | 905 | 930 | — | Cylindrical rod, Suitable for drill bit base bonding. |
| HZ-2516 | CuZnMnNi | 1020 | 1110 | 345 | Cylindrical rod and spherical particle, Suitable for drill bit base bonding. |
| HZ-2791 | CuZnMn | 877 | 898 | 322 | Silver-free, low cost, Widely used for brazing low-end product. |
| HZ-2841 | CuZnNiMnSn | 879 | 900 | 352 | Silver-free, low cost, Widely used in stone processing industry and oil drilling industry. |
| HZ-2851 | CuZnCdSn | 866 | 890 | 223 | Lower melting temp. than the first two materials, better brazing performance. It is easier to remelt the tool head of the waste abrasive tools. |
