Produts Description
Silver based filler metal is the alloy mainly consist of silver or silver copper alloy, this kind of filler metal has excellent process performance, and low melting point, good wettability and joint filling, strong strength, good plasticity and electrical conductivity, good corrosion resistance performance. It's a kind of brazing material with wide application.
Application Areas
The silver based filler metal developed by us not only includes the national standard series, but also the non-standard series by independent R&D. It is suitable for different brazing process such as high frequency, resistance and flame, etc. And it can be widely used in brazing between stainless steel, iron, hard alloy, copper, copper alloy. Besides, we could design new products to meet clients' customized requirements.
Product Form

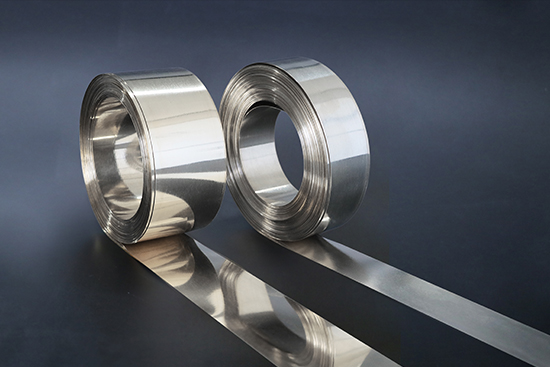

Fux-cored silver rod, flux-coated welding ring, flat wire, welding belt, powder, slurry, granule, ring, special-shaped ring, OEM & ODM available.
Product List
| Model | Chemical Composition | Melting Temp. | Shear Strength N/mm² | Speciality & Application | |||||
| Solidus | Liquidus | ||||||||
| HZ-1501 | AgCuZnNi | 660 | 707 | 338 | Low melting temp., high strength and good brazing performance Widely used in oil drilling industry. |
||||
| HZ-1502 | AgCuZnCdNi | 649 | 674 | 358 | Low melting temperature, high strength, Widely used for brazing the stressed components requiring brazing below 700 ° C. E.g. brazing of composite sheets. |
||||
| HZ-1503 | AgCuZnNi | 663 | 711 | 336 | Low melting temperature, strong heat resistace and good brazing performance, Widely used in oil drilling industry. |
||||
| HZ-1504 | AgCuZnMnNi | 682 | 704 | 470 | Simple welding process , high strength, Mainly used in stone tools of small parts welding. |
||||
| HZ-1304 | AgCuZnNi | 688 | 775 | 330 | Good comprehensive performance Widely used in the brazing of important components such as stone processing industry and geological exploration industry. |
||||
| HZ-1303 | AgCuZn | 677 | 743 | 328 | Good comprehensive performance, Widely used in the brazing of important components such as stone processing industry and geological exploration industry. |
||||
| HZ-1401 | AgCuZnNi | 674 | 768 | 317 | Good brazing performance, high strength, lower silver content, Widely used in the brazing of important components such as stone processing industry and geological exploration industry. |
||||
| HZ-1312 | AgCuZnCdNi | 598 | 610 | 272 | Low melting temp., high strength and good brazing performance, Widely used for brazing the parts requiring brazing below 650 °C. |
||||
| HZ-X55 | AgCuZnSn | 653 | 674 | 224 | Low welding temp., Good wettability and good brazing performance. |
||||
| HZ-X43 | AgCuZnSn | 612 | 656 | 220 | Low welding temperature, Good wettability and good brazing performance. |
||||
| HZ-X23 | AgCuZnCd | 592 | 735 | 258 | Moderation melting temperature, High strength and good brazing performance, Widely used for brazing abrasives in stone processing industry. |
||||
| HZ-X17 | AgCuZnSn | 589 | 663 | 198 | Low welding temp., good wettability, Simple welding process. |
||||
| HZ-Ag30 | AgCuZnSn | 680 | 765 | 320 | Dense weld, All kinds of pipeline welding. |
||||
| HZ-Ag25 | AgCuZnSn | 700 | 795 | 318 | Dense weld, Widely used in all kinds of pipeline welding. |
||||
| HZ-Ag22 | AgCuZnSn | 705 | 800 | 315 | Dense weld, so it is widely used in all kinds of pipeline welding. | ||||
| HZ-1301 | AgCuZnCdNi | 602 | 706 | 315 | Low melting temp., high strength and good brazing performance, Widely used for brazing abrasives in stone processing industry. |
||||
| HZ-1281 | AgCuZnCdNi | 603 | 709 | 254 | Same functions and applications as HZ-1301, but better cost-efficiency. | ||||
| HZ-1251 | AgCuZnMnNi | 717 | 799 | 280 | More economy, suitable melting temp. and high strength, Widely used in stone processing industry. |
||||
| HZ-1221 | AgCuZnCdNi | 593 | 737 | 256 | Moderation melting temp., high strength and good brazing performance, Widely used for brazing abrasives in stone processing industry. |
||||
| HZ-1201 | AgCuZnCdNi | 580 | 762 | 245 | Good brazing fluid, moderation melting temp., high strength and good brazing performance, Widely used in ceramic machinery and all kinds of abrasives brazing. | ||||
| HZ-1191 | AgCuZnCdNi | 585 | 759 | 240 | Good brazing fluid, moderation melting temperature, high strength and good brazing performance, Widely used in ceramic machinery and all kinds of abrasives brazing. |
||||
| HZ-1181 | AgCuZnCdNi | 589 | 757 | 262 | Moderation melting temp., high strength, Lower sliver content and good brazing performance, Widely used in stone processing industry. |
||||
| HZ-1171 | AgCuZnCdNi | 589 | 758 | 260 | Low melting temp., high strength and good brazing performance, Widely used in ceramic machinery and all kinds of abrasives brazing. |
||||
| HZ-1161 | AgCuZnCdNi | 580 | 762 | 223 | More economy,</span > Widely used in stone processing industry. |
||||
| HZ-1151 | AgCuZnCdNi | 577 | 775 | 236 | |||||
| HZ-1131 | AgCuZnCdNi | 579 | 780 | 232 | |||||
| HZ-1101 | AgCuZnCd | 620 | 820 | 245 | More economy, Widely used in dental and stone tool welding. |
||||
| HZ-1035 | AgCuZnSnMn | 842 | 880 | 240 | |||||
| HZ-1013 | AgCuZnNi | 903 | 924 | - | Near-spherical particles, Wuitable for drill bit base bonding |
||||
| HZ-1351 | AgCuZnCd | 610 | 690 | 318 | More economy, high strength and and good brazing performance, Widely used for brazing abrasives in stone processing industry. |
||||
| HZ-1381 | AgCuZnCd | 605 | 684 | 322 | |||||
